Planning a home extension or creating an open-plan living space? One of the most important considerations is how the existing building will be supported when walls are removed, openings are enlarged or additional loads are introduced.
Structural steelwork often plays a central role in these projects, providing the strength needed to support floors, roofs and masonry while allowing homeowners to create larger, more flexible spaces.
But when is a steel beam actually required, what type of steelwork might your project need, and how does the installation process work?
In this guide, we explain the role of structural steel in home extensions and renovations, helping you understand what to expect before work begins.
Why is structural steel used in home extensions?
Many home extensions involve changing the way a property carries and distributes weight.
For example, removing an external wall to connect a new rear extension with an existing kitchen can affect the support provided to the floors, walls or roof above.
A structural engineer may specify a steel beam or frame to transfer these loads safely to suitable supporting walls, columns or foundations.
Steel is particularly useful because it provides considerable strength relative to its size, making it possible to create wider openings without relying on large sections of masonry.
Common applications include:
- Rear and side extensions with large openings
- Open-plan kitchen and dining renovations
- Loft conversions requiring additional structural support
- Large openings for sliding or bifold doors
- Replacement or alteration of load-bearing walls
- Bespoke architectural features requiring steel supports
However, not every extension requires a steel beam. The appropriate solution depends on the existing structure, the proposed alterations and the loads involved.
What types of structural steelwork are used in extensions?
Different projects require different forms of structural support. Understanding the main options can help you make sense of your architect’s drawings or structural engineer’s recommendations.
Steel beams
Steel beams are commonly used to support masonry, floors and roofs above new or enlarged openings.
They may be specified when removing part of a load-bearing wall or creating a wider connection between an existing property and a new extension.
The beam’s size, section and connections must be determined by a structural engineer based on the loads it needs to carry and the available support.
Steel columns and posts
Where a beam cannot be supported adequately by existing walls, steel columns may be introduced to transfer loads down to suitable foundations.
Columns are often used in extensions with particularly wide openings or where the architectural design calls for minimal visible masonry.
Their position and connection details must be coordinated with the wider structural design.

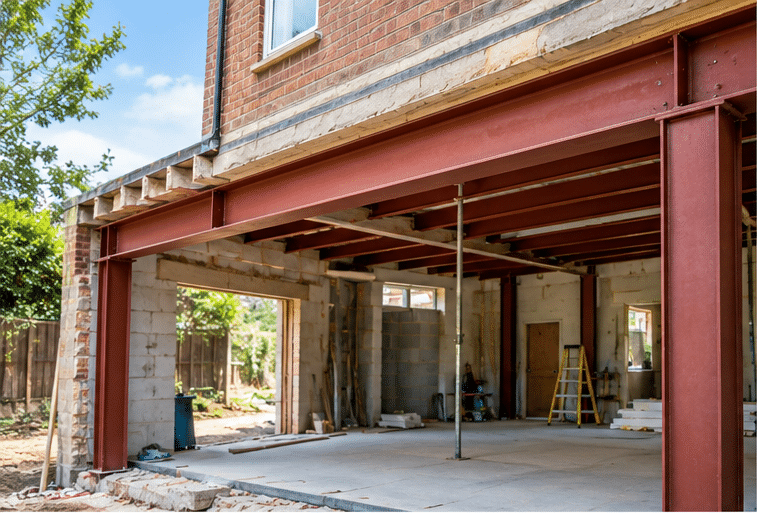

Goalpost steel frames
A goalpost frame generally consists of a horizontal steel beam supported by two vertical steel columns.
This arrangement can be useful when creating large openings for glazed doors or open-plan extensions, particularly where the surrounding masonry cannot provide the required support.
Unlike a simple beam, the frame may also need to resist lateral forces, depending on its structural design.
Goalpost frames must be engineered as complete systems, with suitable connections, base plates and foundations.
Bespoke structural steel frames
Some extensions require more complex arrangements incorporating multiple beams, columns or specialist connections.
These are manufactured to suit the individual property and may be needed where existing walls, unusual dimensions or architectural requirements make standard arrangements impractical.
At 360 GSS, our structural steel fabrication and installation services include bespoke beams, columns and support frames manufactured around the requirements of each project.
Do you need a structural engineer for a steel beam?
Where structural steelwork supports part of a building, professional structural design is generally required.
A structural engineer assesses the proposed alterations and determines how loads should be transferred through the new steelwork into the supporting structure.
Their work may include:
- Calculating the loads acting on the proposed beam or frame
- Specifying suitable steel sections and connections
- Assessing the capacity of supporting walls and foundations
- Designing additional supports or strengthening where necessary
- Preparing structural calculations and drawings for Building Control
The correct design is about more than selecting a beam that appears strong enough. The supporting structure, connections and load path are equally important.
360 GSS provides access to structural engineering calculations and reports alongside its steel fabrication and installation services, helping coordinate the technical requirements of complex projects.
Do steel beams need Building Regulations approval?
Structural alterations to a home will commonly fall within the scope of Building Regulations.
In England, the structural requirements are addressed principally through Part A, which concerns the stability and strength of buildings.
Where approval is required, the relevant Building Control body may need structural calculations, drawings and other supporting information to assess the proposed work.
Additional requirements can apply, including those relating to fire protection, depending on the location and use of the steelwork.
It is important to establish the applicable requirements before construction begins rather than assuming that installing a steel beam automatically makes an alteration compliant.
How is structural steel installed in a home extension?
The installation process varies depending on the project, but most structural steelwork follows several important stages.
1. Structural design and planning
The proposed extension or alteration is reviewed to establish what structural support is required.
Architectural drawings, structural calculations and site conditions help determine the appropriate steelwork.
2. Site survey and measurements
Accurate measurements are taken to confirm the dimensions of the opening, access restrictions and fixing positions.
This stage is particularly important in existing buildings, where actual dimensions may differ from the original drawings.
3. Steel fabrication
Once the specification and fabrication details are approved, the steelwork is manufactured to the required dimensions.
Beams, columns, connection plates and other components are prepared for installation.
Bespoke fabrication helps accommodate unusual layouts and reduces the need for avoidable alterations on site.
4. Temporary support and installation
Before load-bearing elements are altered, suitable temporary support must be designed and installed where necessary.
The steelwork is then positioned, connected and supported in accordance with the structural design.
Lifting arrangements, access and installation sequencing should be planned carefully, particularly where large beams must be brought into an existing property.
5. Inspection and completion
Once installed, the steelwork and its connections should be checked against the approved design.
Any required Building Control inspections and associated works, such as fire protection or making good, can then be completed.
What affects the cost of structural steelwork?
There is no single price for structural steel installation because every project has different requirements.
The main factors influencing cost include the size and weight of the steel sections, fabrication complexity, connection details, site access and installation conditions.
A straightforward beam installation may be considerably less complex than a goalpost frame requiring new foundations, multiple connections and specialist lifting equipment.
Other considerations include structural engineering, temporary works, protective finishes and any alterations required to the surrounding building.
For an accurate quotation, it helps to provide architectural drawings, structural calculations and photographs of the proposed installation area.
Why choose bespoke structural steel fabrication?
Although some steel sections are available in standard sizes, the finished structural arrangement must suit the specific building.
Bespoke fabrication allows beams, columns and connections to be prepared around the engineer’s specification and actual site dimensions.
This is particularly beneficial when working with older properties, restricted access or extensions involving multiple structural elements.
Accurate fabrication also helps the steelwork integrate with other parts of the project, including glazing, masonry and architectural finishes.
For projects incorporating large glazed openings, balconies or other specialist features, coordinating the structural steel and associated installations can help reduce complications between trades.
Planning a home extension that requires structural steel?
Whether you’re removing a load-bearing wall, creating a large opening for sliding doors or building a new extension, the correct structural steelwork is essential to the success of the project.
360 GSS provides bespoke structural steel fabrication, supply and installation for residential and commercial projects across London, Buckinghamshire, Berkshire, Oxfordshire, Hertfordshire and Surrey.
Working from structural drawings and project specifications, our team can help deliver accurately manufactured beams, columns and frames designed to suit your building.
Explore our structural steel fabrication services or contact 360 GSS to discuss your project and request a quotation.
